Types of membrane structures and membrane performance

Membrane Structure

Framed membrane Structure
The frame bears the load and the membrane is used
as a secondary structural material
or finishing material.

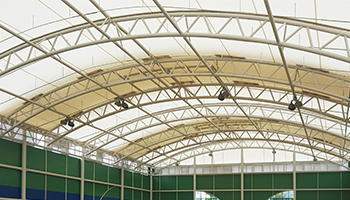

Framed membrane Structure

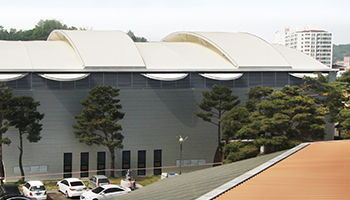

Framed membrane Structure

Suspension Membrane Structure
The membrane bears the load
and it is supported by pillars, arches, and cables.

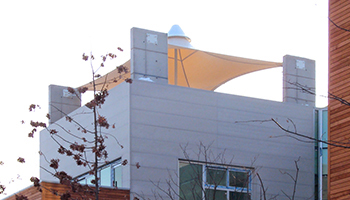

Suspension Membrane Structure

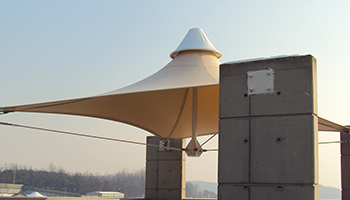

Suspension Membrane Structure

Pneumatic Structure
Single layer pneumatic structure
Secured through tensile force
by applying internal air pressure (20-50 mm/Aa)
blasted into an indoor space

Double layer pneumatic structure
Secured through tensile and bending force
by applying internal internal pressure (150-650 mm/Aa)
blasted into a double membrane

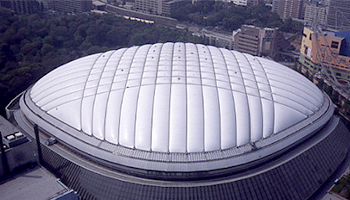

Air Supported StructureAir Supported Structure

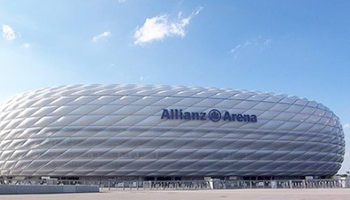

Air inflated StructureAir inflated Structure

Table for comparing the performance of architectural fabrics

Item
Fabric
Coating Material
Thickness (mm)
Tensile Strength (N/5cm)
Tearing Strength (N)
Durability
Self-Purifying
Color
Price
PVDF
PVDF
Polyester
PVC + PVDF
0.75 or more
3700 ~ 7800
490 ~ 1400
10 or fewer years
Normal
Diverse
Low Price
ECM
ECM
Polyester
PVC + ECM
0.8 or more
4400 ~ 5600
730 ~ 780
10 or more years
Slightly Exceeds Standards
Limited
Mid Low Price
PVF
PVF
Polyester
PVC + PVF
0.6 or more
4400 ~ 8100
390 ~ 930
20 or fewer years
Excellent
Limited
Mid High Price
PTFE
PTFE
Glass Fiber
PTFE
0.6 or more
3600 ~ 7500
275 ~ 350
25 ~ 30 years
Excellent
Limited
High Price
